KIMTECH™ M3

Disposable face mask with flat embossed PES-ties to tie

Back to the face mask in the product portfolio
Width
Bacterial Filtration Efficiency
Particulate Filtration Efficiency
Pressure difference delta P
sterile
latex-free
three layer

Disposable garments for the facial area

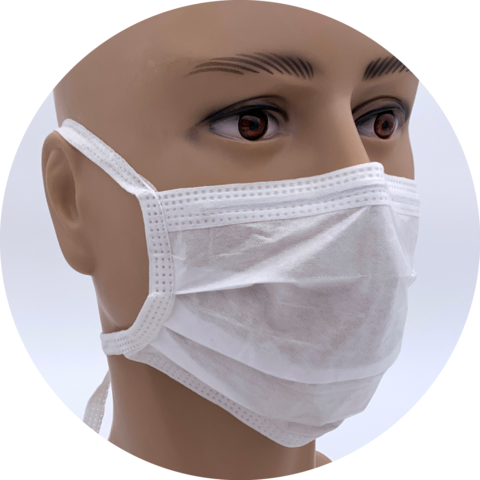

KIMTECH™ M3, disposable face mask with soft ties, Art. No. 43420
18 cm
≥99% at 0,3 µm
≥99% at 0.1 µm
<5 mm H2O/cm2
  • non-sterile
  • without natural latex rubber
  • under controlled conditions double packed in PE bag
  • for laboratory requirements
  • for particle monitored cleanrooms
  • as a supplement to the reusable concept

Product recommen­dation based on cleanroom classes

Air cleanliness class EN ISO 14644-1
particulate monitored areas

123456789low dust

Hygiene zones according to GMP
microbiological monitored areas

ABCDE

A one-to-one classification of disposable face masks to a cleanroom class according to ISO 14644-1 is not possible. Recommendations can only be made based on cleanroom specific requirements, e.g. "abrasion resistance" or "particle emission" and, to some extent, „filtration efficiency“. In the VDI guideline 2083 Part 9.2 chapter 6 the user can find additional information.

Technical data

    Unit of measurementValueTest method
Type of material (face mask)     Film*
spunbonded fabric
Width   cm 18

Height   cm 9.5

Materials (face mask)
outer layer
filter medium
inner layer
polyethylene (PE)*
polypropylene (PP)
BICOSOFTM (PE)
Pleating     three times

Type of fastening     flat elastic headbands to tie,
hydroentangled spunbonded
non-woven fabric
Materials (fastening)     Polyester (PES)

Material nose bridge/iron     completely wrapped,
malleable aluminium strip
Seams     thermally bonded

Particle filtration efficiency (PFE)   % at 0.1 µm ≥99 ASTM F2299 Standard Test Method for Determining the Initial Efficiency of Materials
Used in Medical Face Masks to Penetration by Particulates Using Latex Spheres
Bacterial filtration efficiency (BFE)   % at 0.3 µm ≥99 ASTM F2101 Standard Test Method for Evaluating the Bacterial Filtration Efficiency (BFE)
of Medical Face Mask Materials, Using a Biological Aerosol of Staphylococcus aureus
Breathability / differential pressure (∆P)   mm H2O/cm2<5 ASTM F2100 Standard Specification for Performance of Materials
Used in Medical Face Masks
Viral filter efficiency (VFE)   % per x l/min A. n.s.
Airborne Particles
(APC by Helmke Drum) 		  ≥0,5 µm Cat. I (<600) IEST-RP-CC003.4
Garment System Considerations for Cleanrooms and Other Controlled Environments
Colour (face mask/band)     white/white

PU     500 pieces
10 bags of 50 pieces
in PE inner bag

The manufacturer's technical data listed above are typical values at the time of publication. They are not specifications. All data are without guarantee, changes are possible without prior notice.
