Disposable face mask

with elastic headbands

Back to the face mask in the product portfolio
Width
Bacterial Filtration Efficiency
Particulate Filtration Efficiency
Pressure difference delta P
sterile
latex-free
three layer

Disposable garments for the facial area

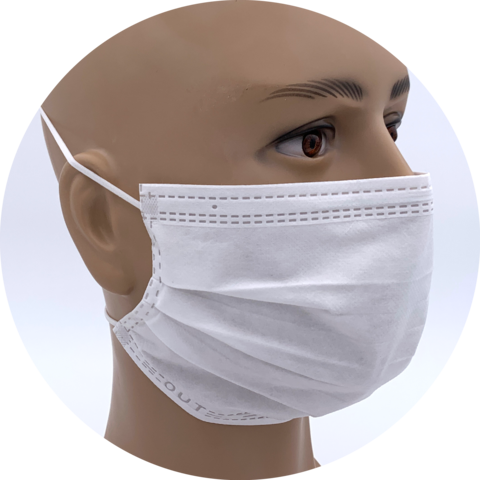

Disposable face mask with elastic headbands, Art. No. 44630-23
23 cm
> 98 %
> 98 %
k.A.
  • disposable face mask with round knitted elastic headbands, extra wide (23 cm)
  • „OUT“ embossing for a correct fitting
  • three layer non-woven, triple folded
  • without natural latex
  • non-sterile
  • individually packed and sealed in a polyethylene bag
  • high bacterial and particulate filtration efficiency
  • packed under controlled conditions
  • double packed in PE bags for a safe transfer to cleanrooms and zones of technical cleanliness
  • for laboratory requirements
  • in particulate monitored cleanrooms and zones of technical cleanliness
  • as a supplement to the reusable consumable goods concept

Product recommen­dation based on cleanroom classes

Air cleanliness class EN ISO 14644-1
particulate monitored areas

123456789low dust

Hygiene zones according to GMP
microbiological monitored areas

ABCDE

A one-to-one classification of disposable face masks to a cleanroom class according to ISO 14644-1 is not possible. Recommendations can only be made based on cleanroom specific requirements, e.g. "abrasion resistance" or "particle emission" and, to some extent, „filtration efficiency“. In the VDI guideline 2083 Part 9.2 chapter 6 the user can find additional information.

Technical data

    Unit of measurement Value Test method
Type of material (face mask) /
mass per unit areat ± 2 g/m² 		    spunbonded non-woven 20 g/m²
meltblown non-woven 20 g/m² & 15 g/m²
Width (± 5 mm)   cm 23

Height (± 5 mm)   cm 9.5

Materials (mouthguard)
outer layer
filter medium
inner layer 		    Polypropylene (PP)
Pleating     three times

Type of attachment     elastic head ties
approx. 28 cm above/24.5 cm below
Materials (fastening)     Polypropylene (PP)

Material nose bridge / bow     plastic-coated strip made of double steel wire

Seams     thermally bound

Particle Filtration Efficiency (PFE)   % at 0.1 µm >98 IEST-RP-CC003.3
Bacterial Filtration Efficiency (BFE)   % at 3.0 µm >98 IEST-RP-CC003.3
Breathability / pressure difference (∆P)   mm H2O/cm2 n.s. IEST-RP-CC003.3
Airborne Particles (APC) ≥0.3 µm
   number/piece 210 IEST-RP-CC003.3
Colour (face mask/banding)     white/white

PU     40 bags of 25 pieces,
single packed,
in PE outer bag

The manufacturer's technical data listed above are typical values at the time of publication. They are not specifications. All data are without guarantee, changes are possible without prior notice.
