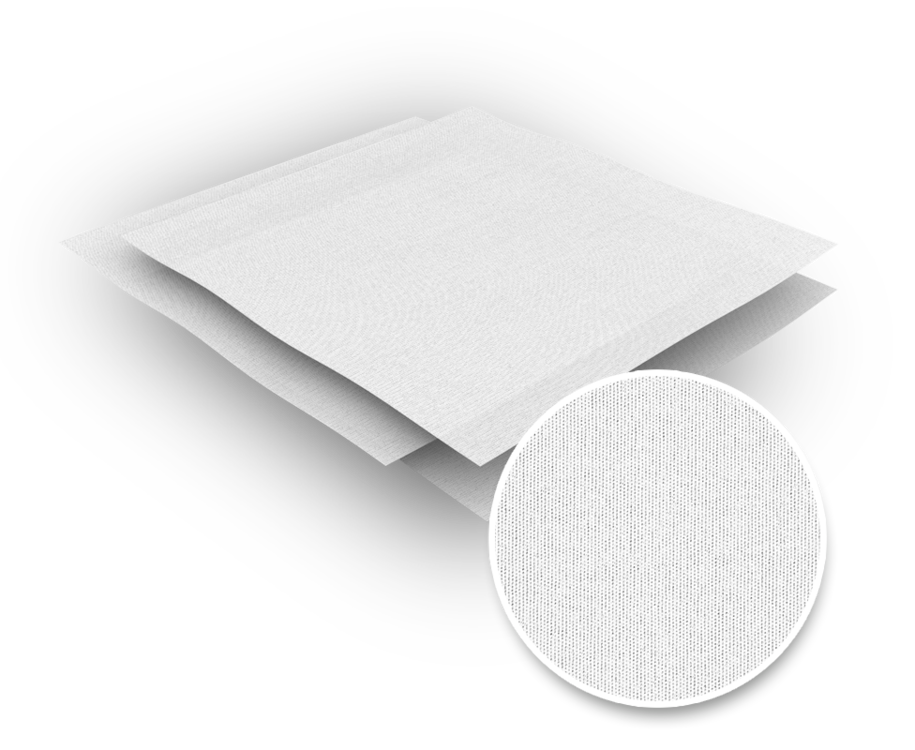

Anticon 100® StandardWeight™ wipes from CONTEC® are made from 100% polyester filaments as a double knitted interlock construction. The clean cut edges have low particle and fiber generation to minimize contamination. Using patented textile technology, Anticon 100® StandardWeight™ wipes achieve a fast absorption rate, making them an excellent choice for wiping and absorbing spills in critical cleanroom environments.
Facts
Polyester
Interlock knit, 100% PES, cold cut edges
Properties
- 100% polyester
- double-knit interlock fabric made of filaments
- cold cut edges
- chemically resistant
- decontaminated in a cleanroom laundry
- double bag packed in a cleanroom (air cleanliness class ISO 4)
Advantages
- robust wipe fabric
- very wide range of applications
- low ionic and metallic impurities
Applications
- cleaning wipe for both critical and non-critical areas
- well suited for angular, rough surfaces and objects that might damage a non-woven wipe
Product recommendation based on cleanroom classes
Of course, cleanroom wipes used in ISO 5 can also be used in ISO 9, but in this case the economic efficiency and usefulness should be considered.
A 1 to 1 allocation of cleanroom wipes to an air cleanliness class according to ISO 14644-1 is not possible. Recommendations can only be made on the basis of special properties relevant from a cleanroom technical point of view, such as "abrasion resistance" or "particle emission". Users can find further information on this in VDI Guideline 2083 Part 9.2.
Technische Daten
Properties | Unit of measurement | Value | Test method | |
---|---|---|---|---|
Material | 100% PES | |||
Edge processing | cold cut | |||
Surface weight | g/m2 | 120 | ||
Absorption capacity (Ai) intrinsic (Ae) extrinsic | ml/g ml/m2 | 2,87 339 |
IEST-RP-CC004.3 Section 8.1 | |
NVR Non-volatile residues |
IPA based DI water based |
µg/cm2 µg/cm2 |
0.08 0.04 |
IEST-RP-CC004.3 Section 7.1.1 |
Particulate residues | ≥ 0.5 µm | x 103/cm2 | 0.397 |
IEST-RP-CC004.3 Sec. 6.1.3 Biaxial Shake Test and LPC |
Fibre residues | ≥ 100 µm | fibres/cm2 | 0.1558 |
IEST-RP-CC004.3 Sec. 6.2.2 Optical and Scanning Electron Microscopy |
Ionic residues |
Sodium (Na)+ Chloride (Cl)- |
ppm ppm |
0.184 0.030 |
IEST-RP-CC004.3 Section 7.2.2 |
Organic contaminants |
silicone oil amides D-n-octylphthalate (DOP) |
n. s. n. s. n. s. |
by FTIR spectrometer Fourier transform infrared spectrometer | |
Size | PU/Carton | subpacked | Art. No. | |
9" x 9" 12" x 12" |
1,200 400 |
8 bags à 150 wipes 4 bags à 100 wipes |
51MI-495352B 51MI-495352 | |
n. s. = not specified n. d. = not detectable |
